System Diagrams
This page contains all the key diagrams for the Blockchain Record Keeping System.

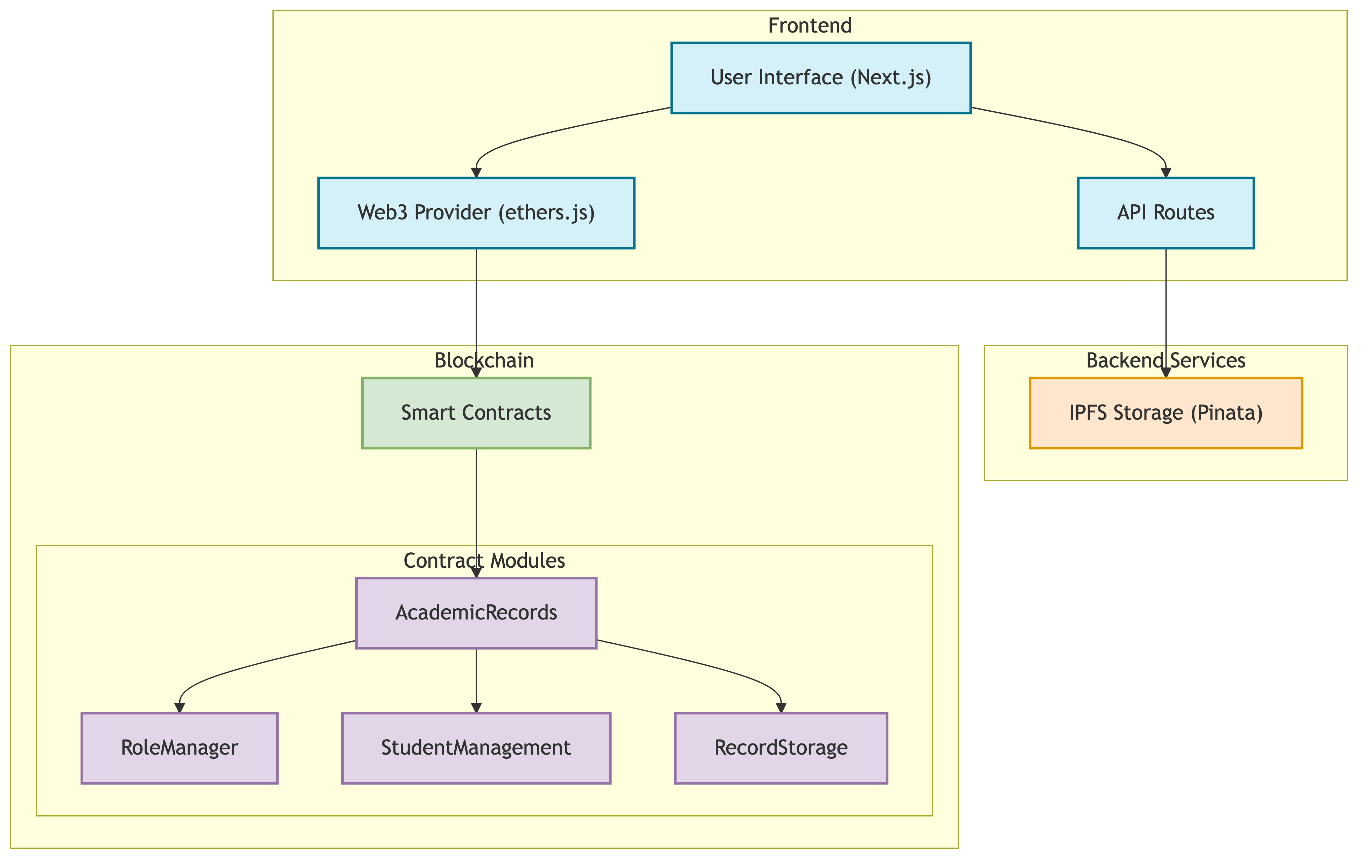

System Architecture
The overall architecture of the Blockchain Record Keeping System:

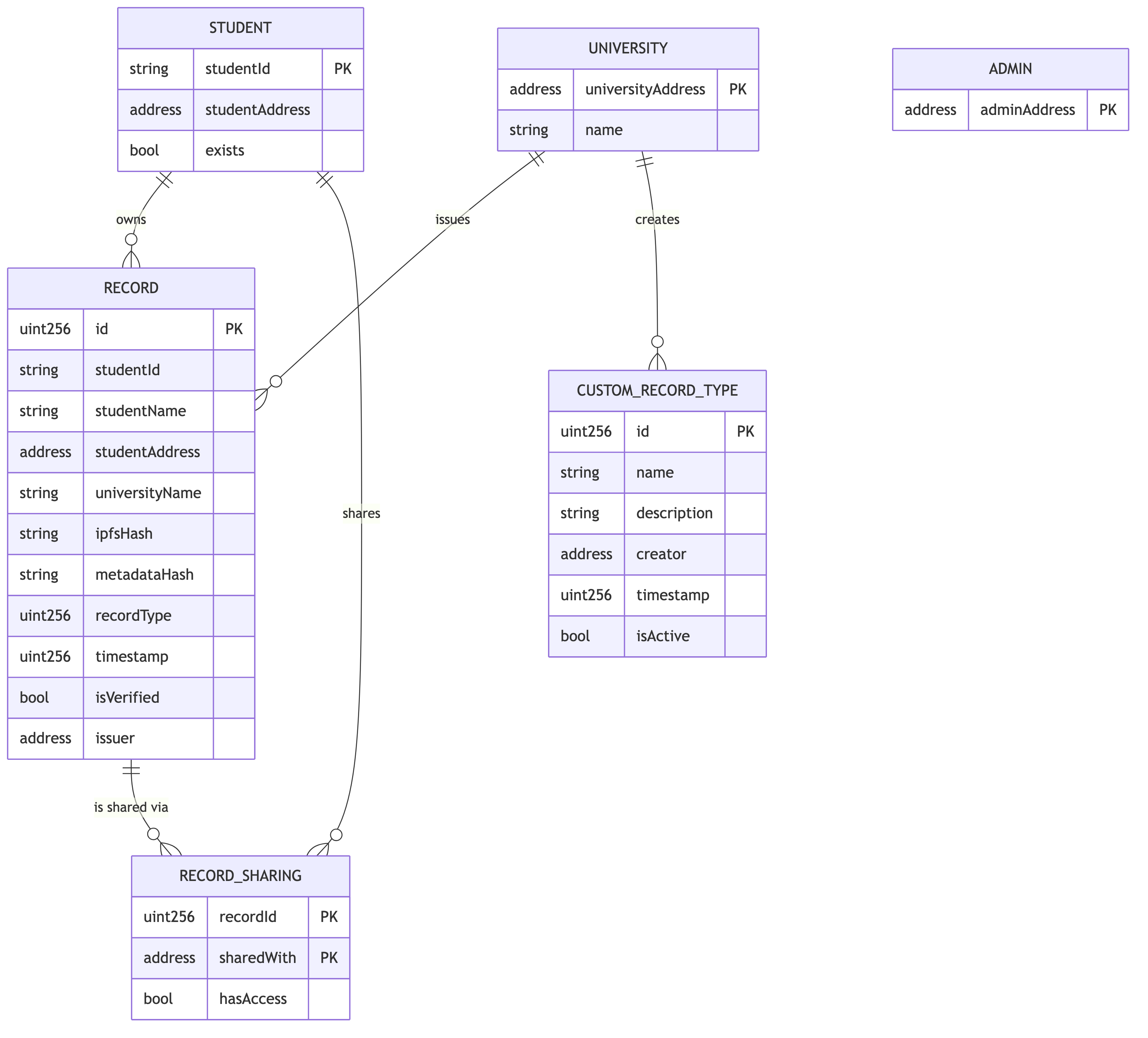

Data Model
The data model for academic records and related entities:

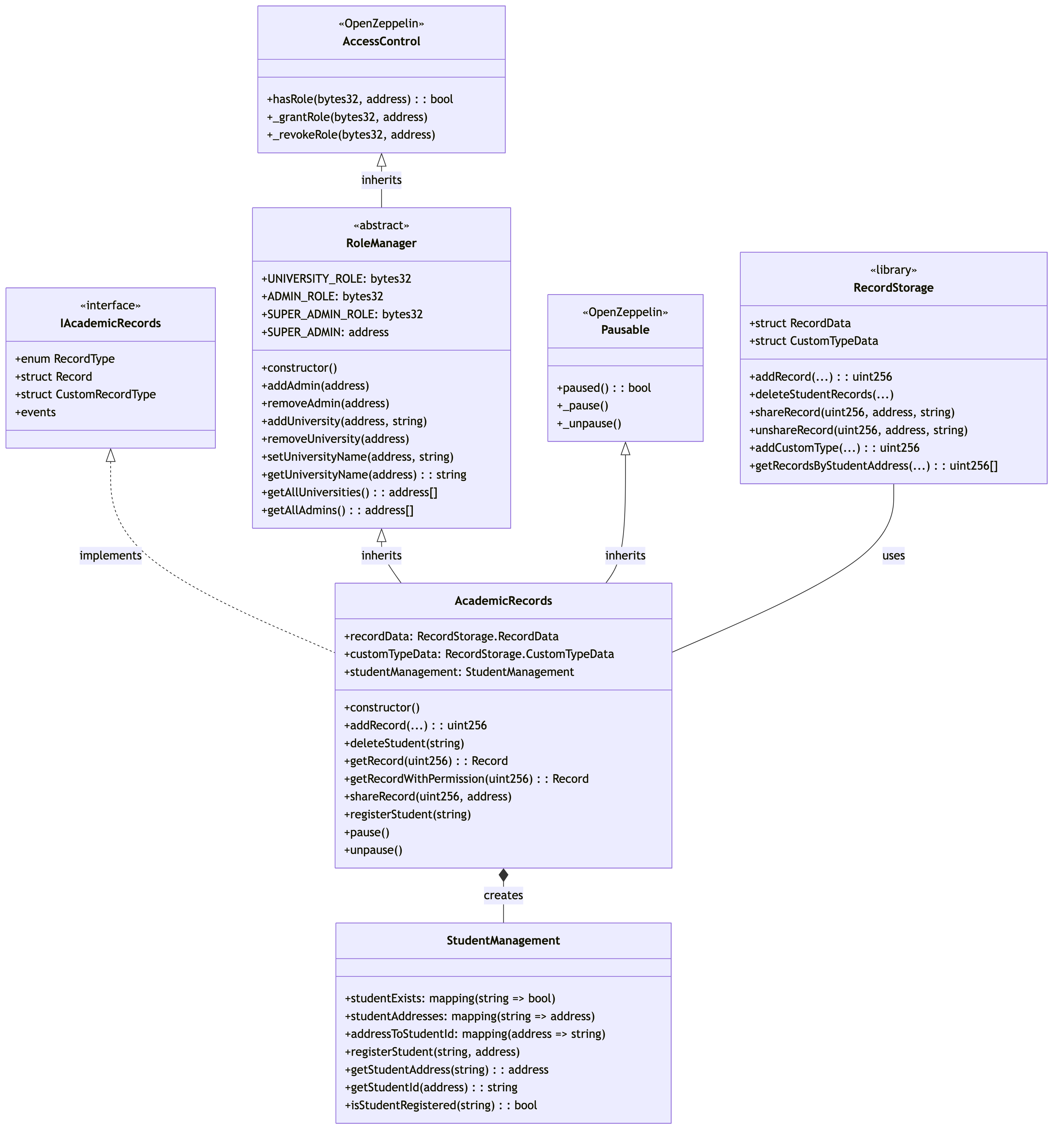

Smart Contract Relationships
The relationships between different smart contracts in the system:

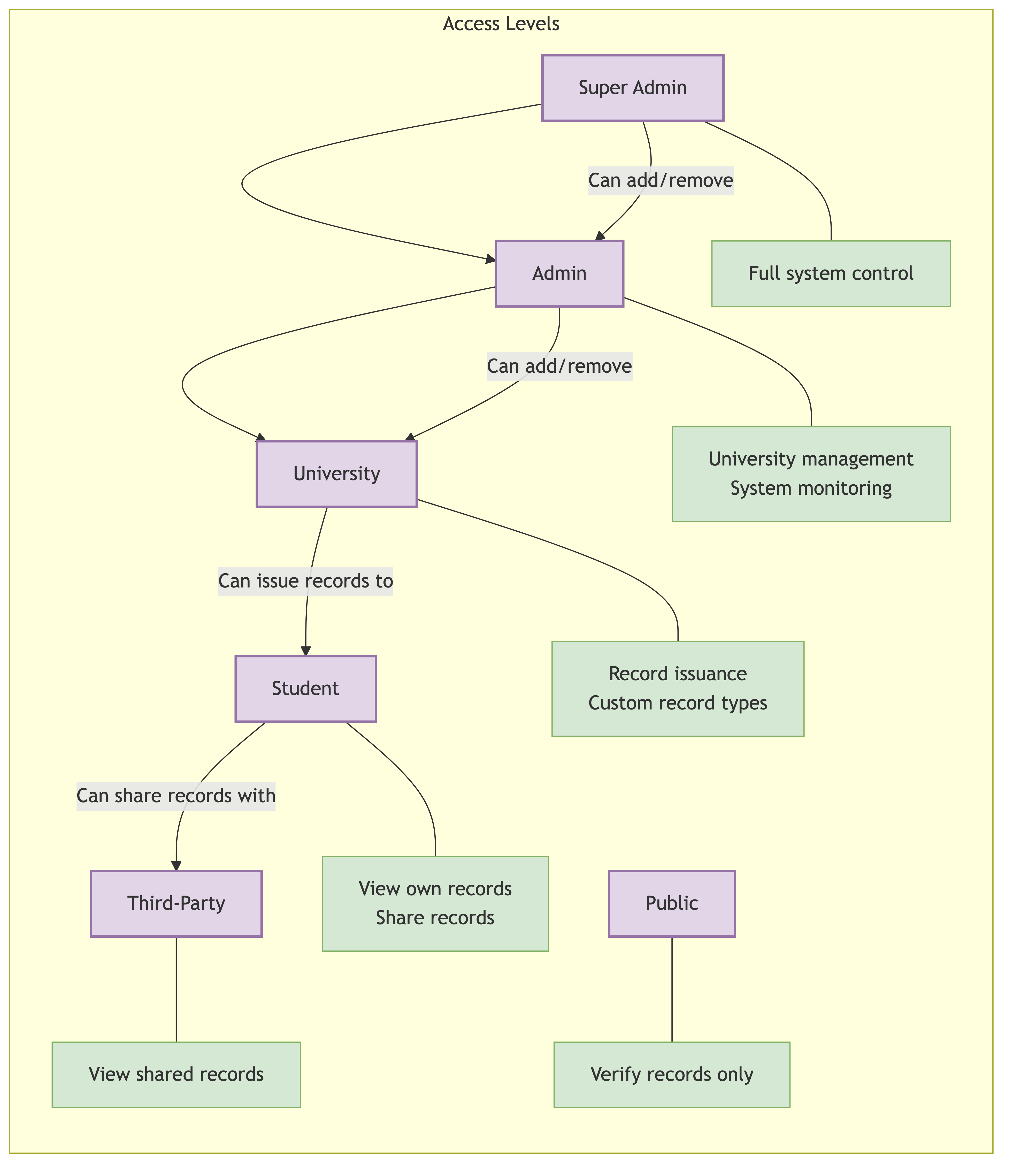

User Roles
The different roles and their relationships in the system:

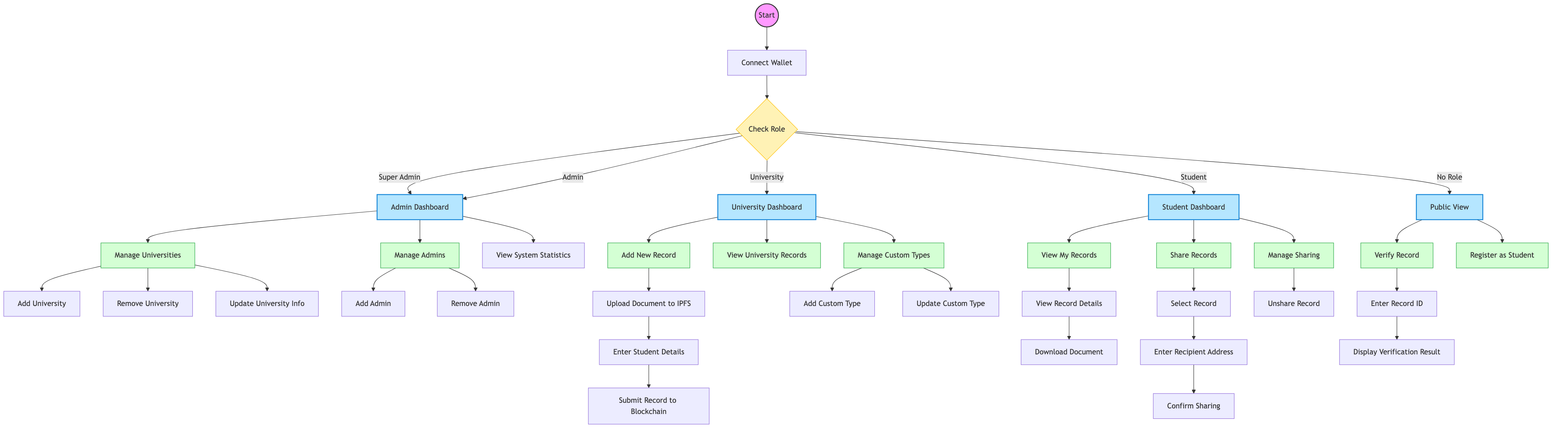

User Flow
The general flow of user interactions:

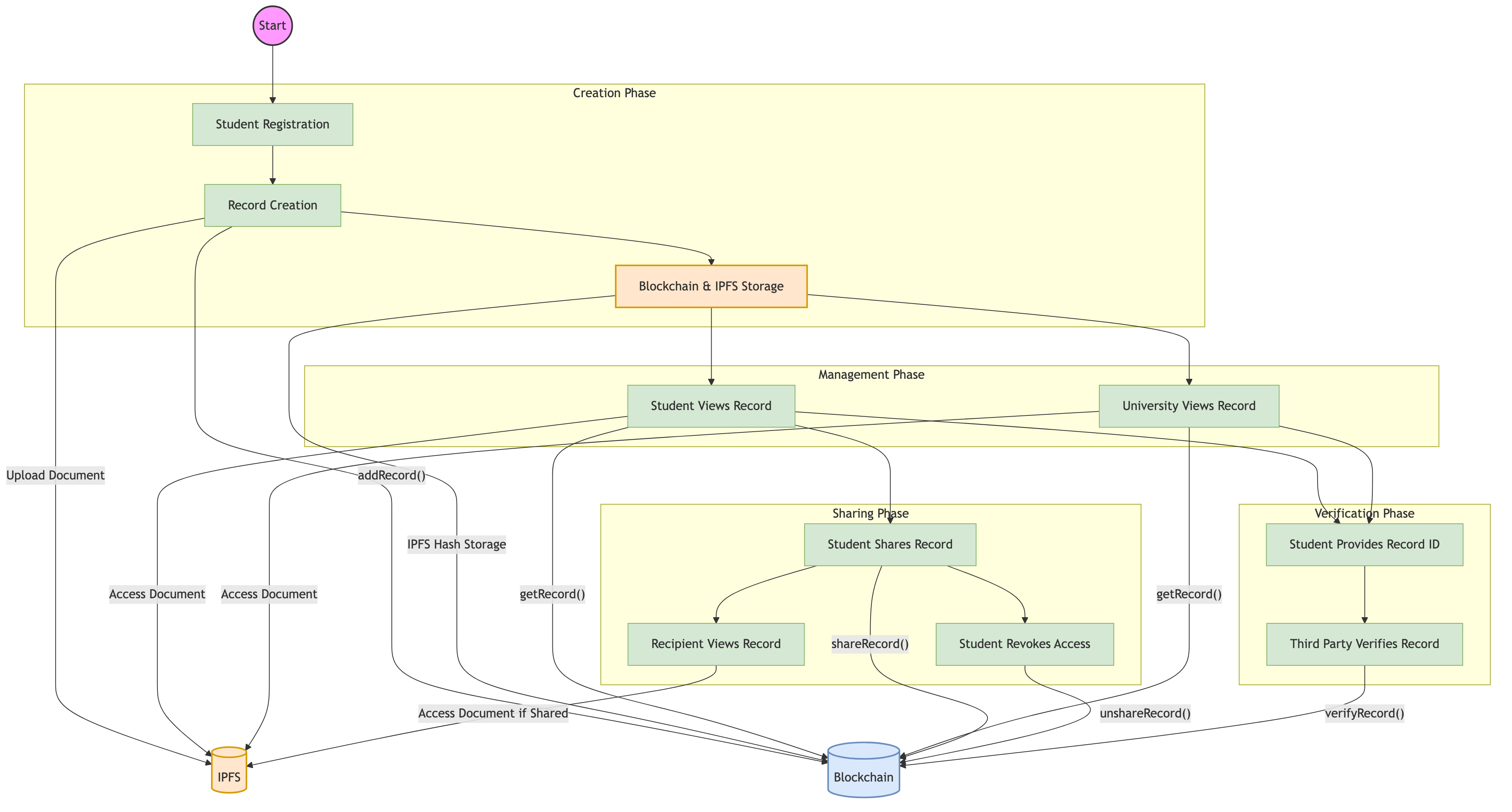

Record Lifecycle
The complete lifecycle of an academic record in the system:

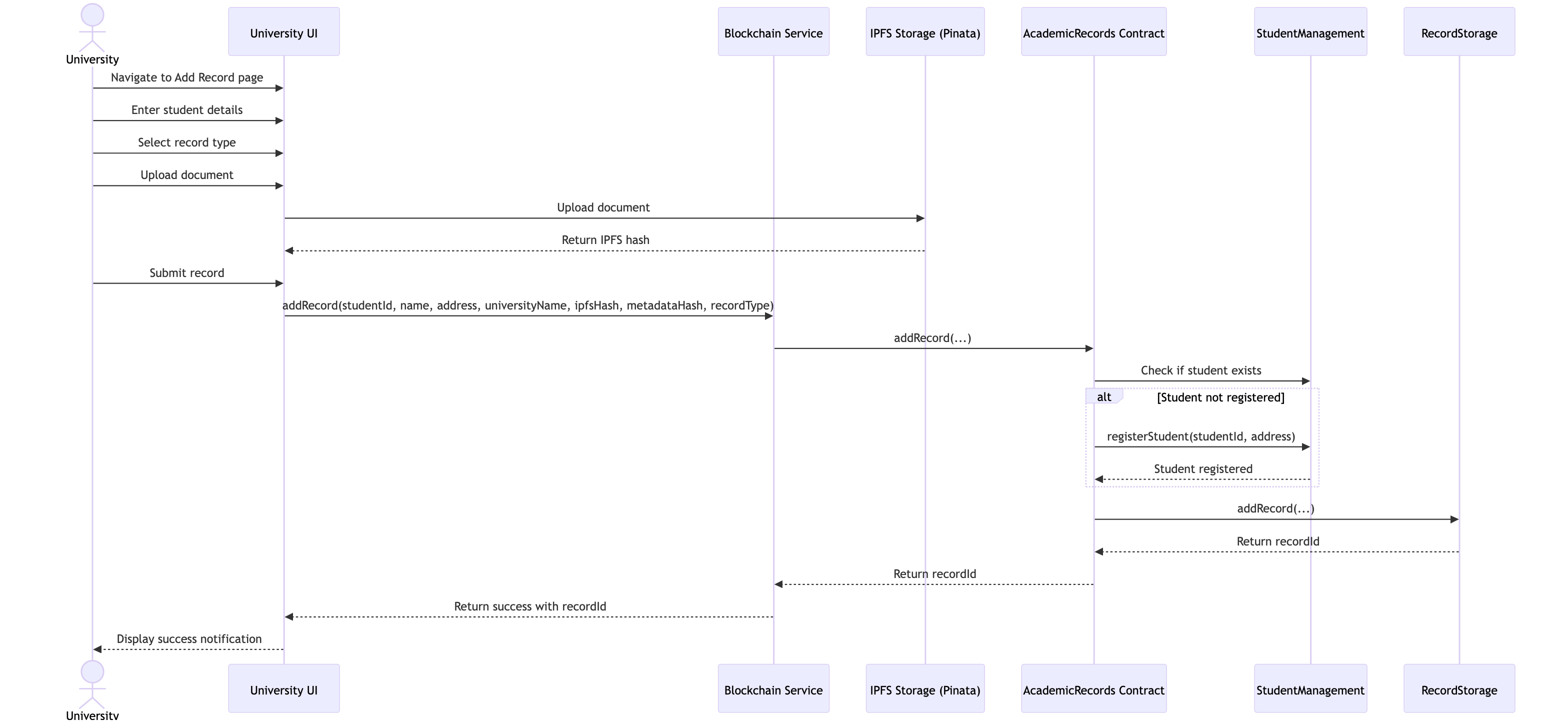

Record Issuance Sequence
The sequence diagram for record issuance:

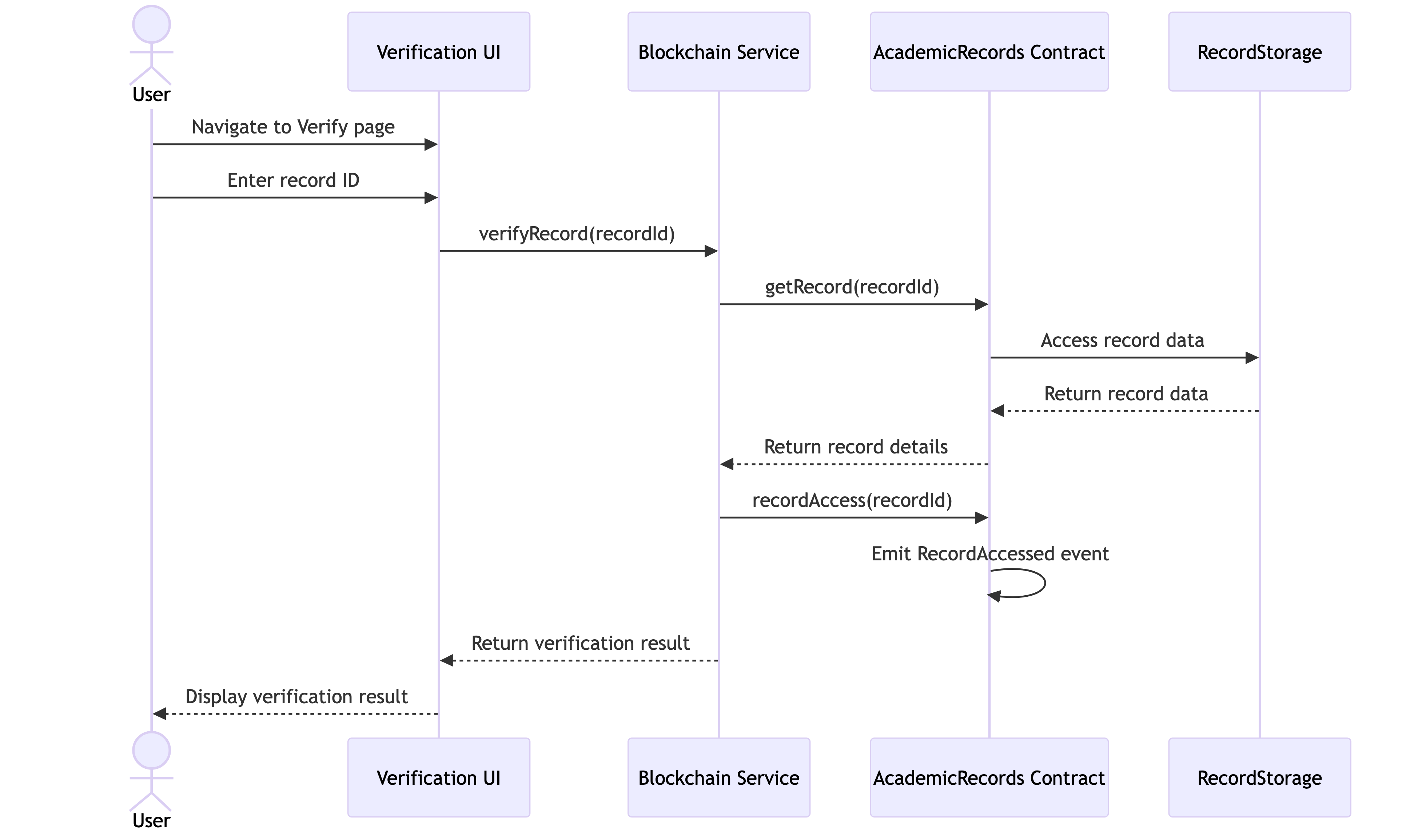

Record Verification Sequence
The sequence diagram for record verification:
Record Sharing Sequence
The sequence diagram for record sharing:

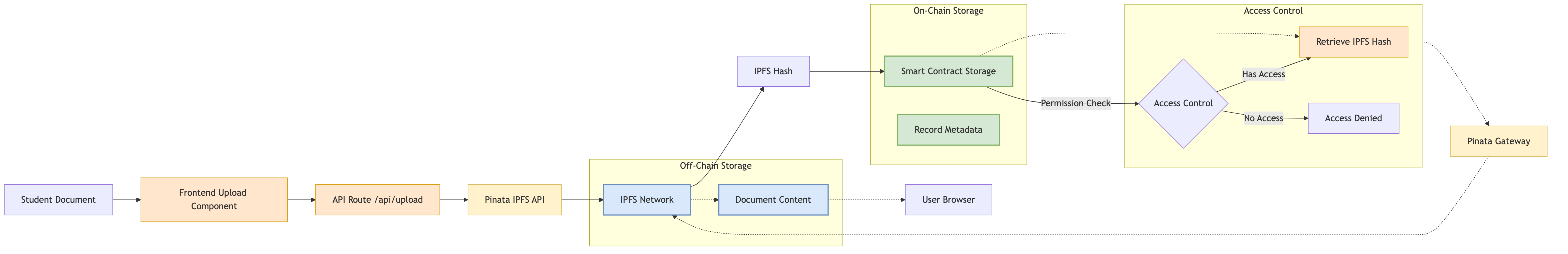

Document Storage Workflow
The workflow for storing documents on IPFS:
